New Resin Surface for Car Repair Centre Scotland | 2215 m2
What the client wanted to achieve
This client are a highly regarded car body shop repair specialist located just outside Glasgow, with this project the client required a flat functional floor with aesthetics that would match the rest of the buildings high quality finishes so this was the brief we were given. This project though was slightly more challenging as it was not the case of just supplying an expensive self- levelling system or a pumpable screed with a coating as there was a strict budget to meet.

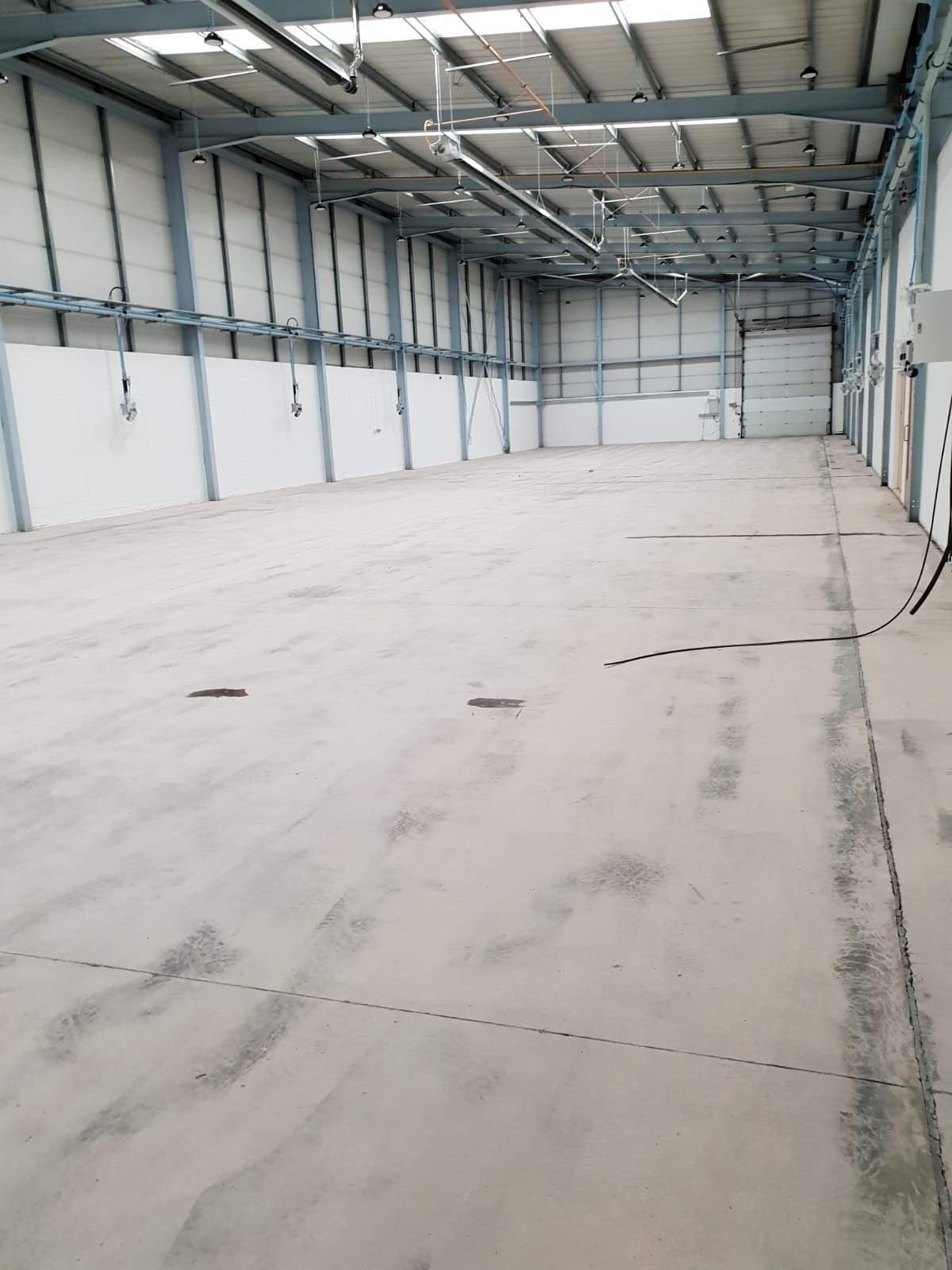

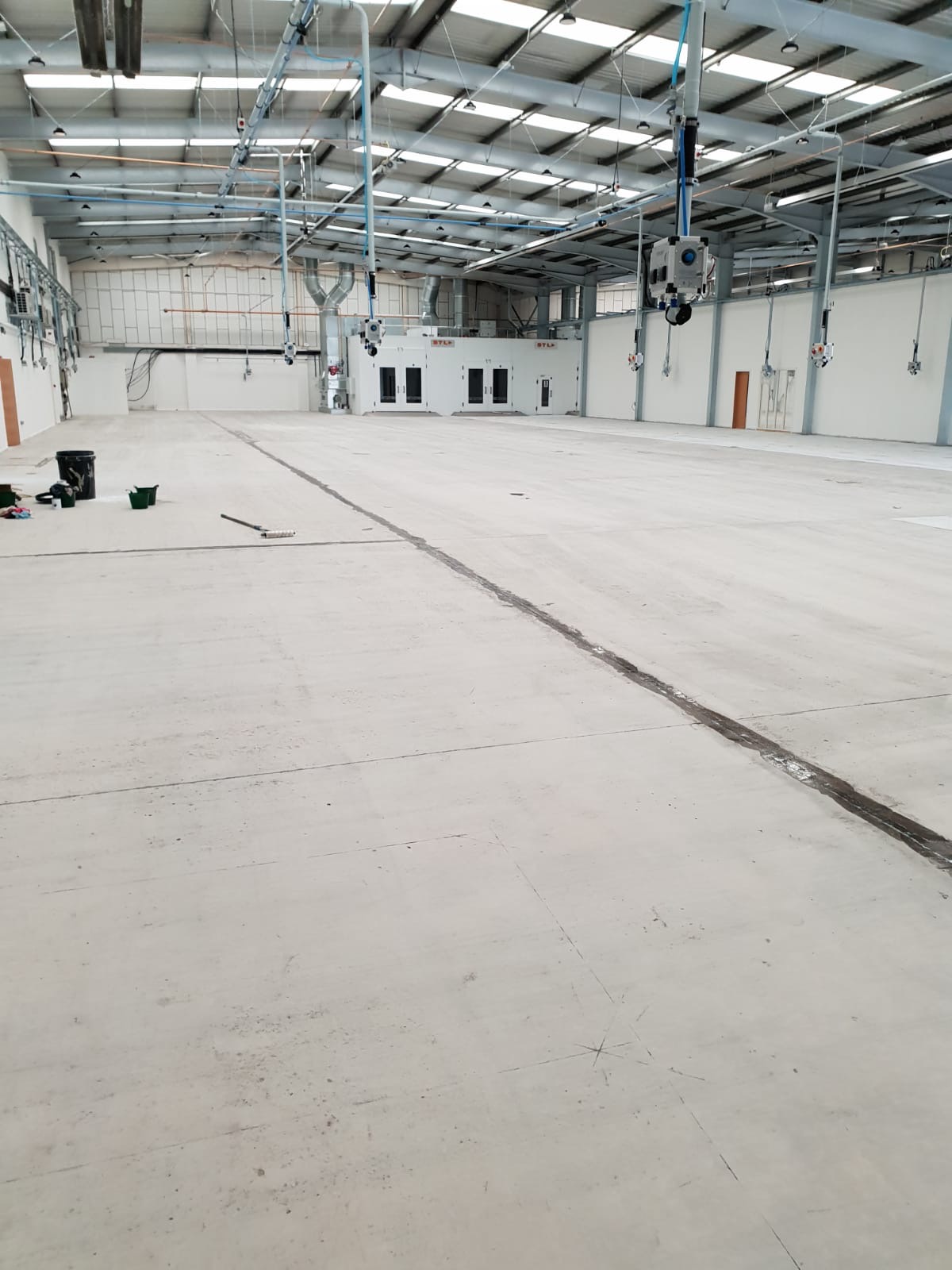

Other challenges also included removing existing epoxy coatings in various thicknesses in a variety of locations around the building, there was also lots of surface damage from the previous company so addressing this was vital as we were only working with a system that would finish at between 1.5mm & 2mm.
The solution

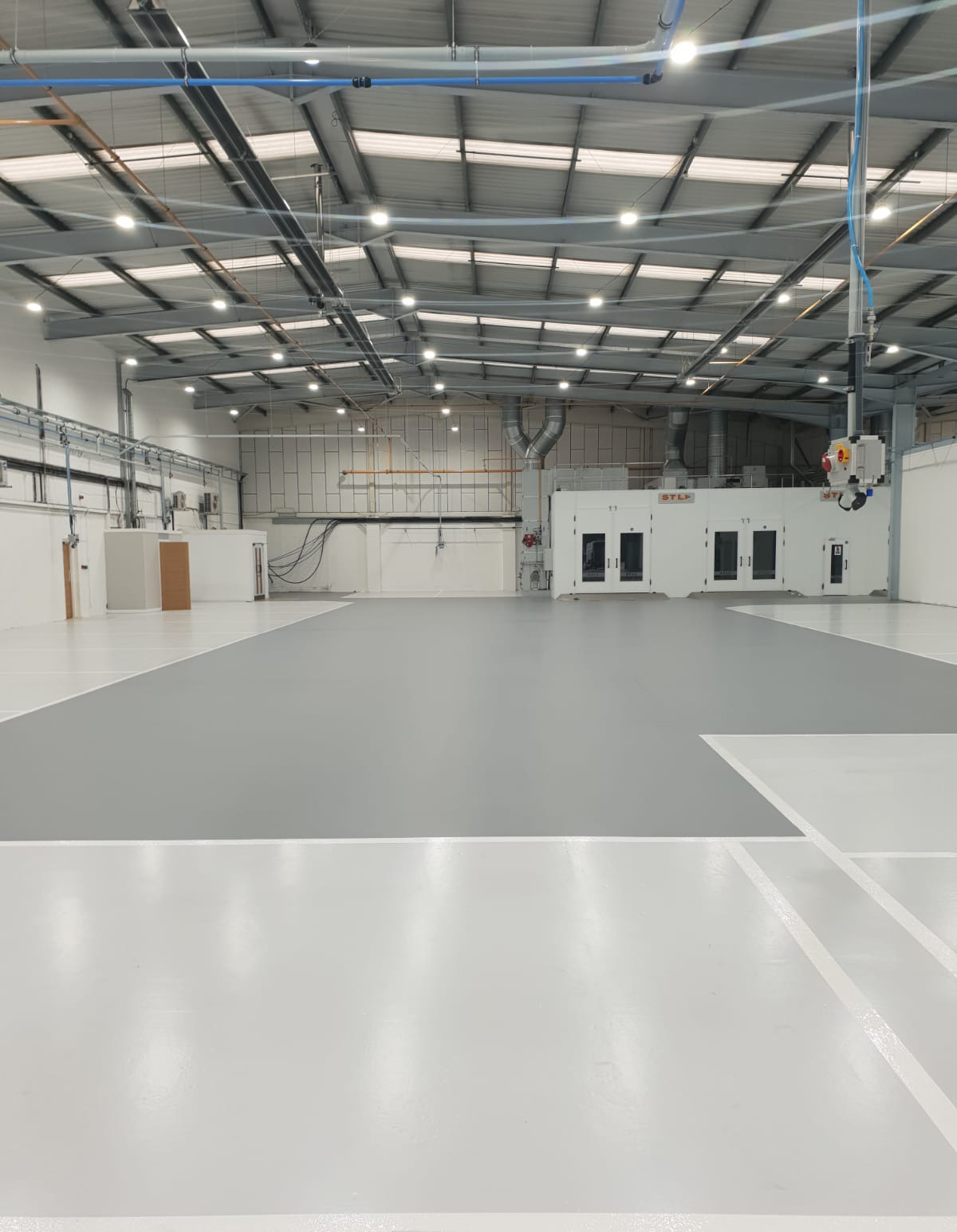

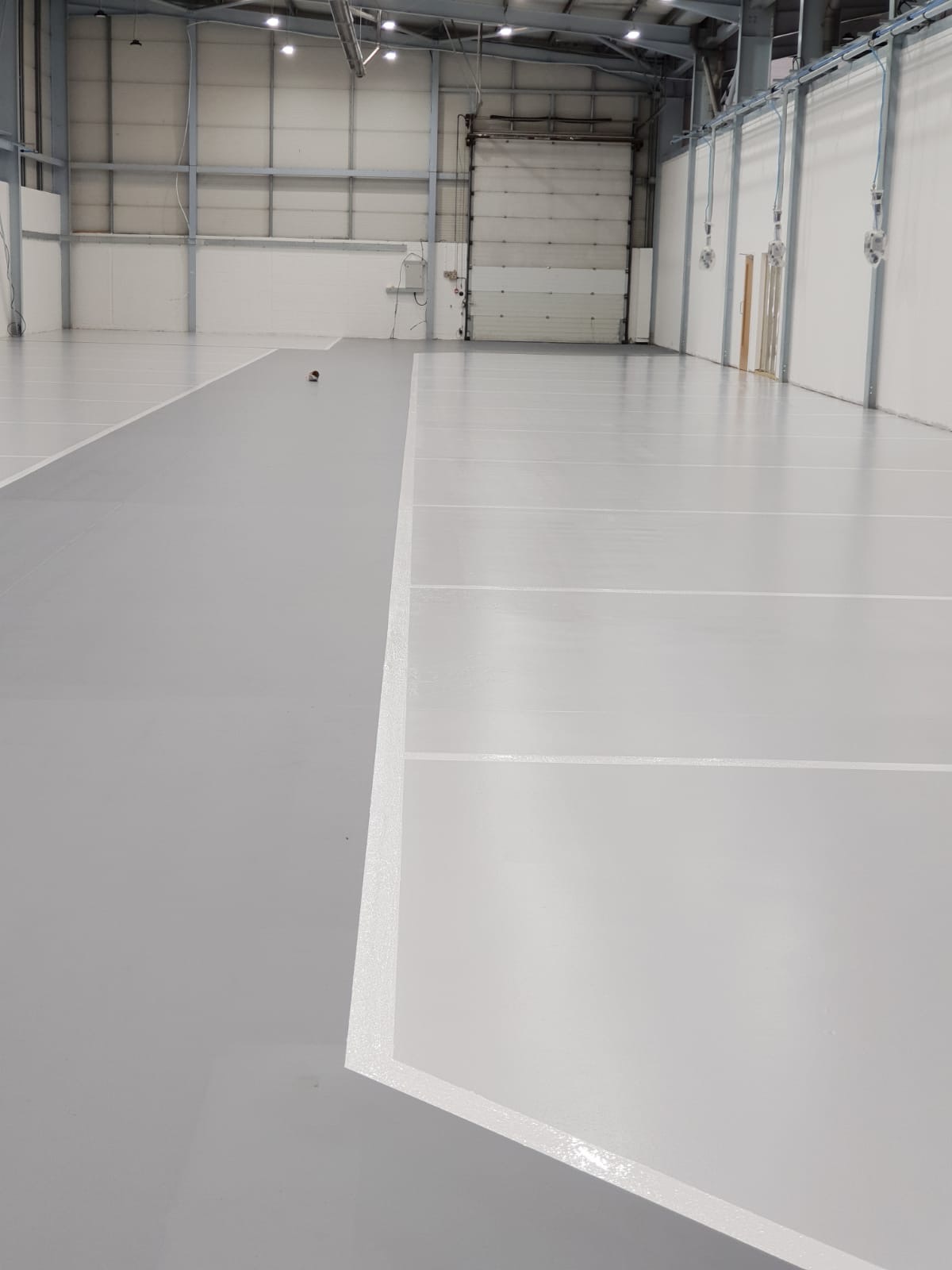

Once Contact Flooring Group had understood the requirements and the high standard set out by the client we set about putting together a system that would deliver, taking into account that the building was 2215m2 in area and we had a very tight budget to meet we had to come up with a system that would create some thickness to help eliminate the damage and undulations in the substrate. The first thing was to agree with the client that a hardwearing epoxy system was the correct specification with a 2 coat UV stable system as the final finish, with this we came up with an epoxy scratch coat installed by squeegees and back rolled, this was installed at approximately 1mm in thickness, following from this we then installed 2 coats of UV stable, chemical resistant coating in a mid-grey and light grey finish to separate the traffic lanes from the parking bays. Once the total system had been installed we then finished of the parking bays and door entrances with 100mm wide demarcation lines ultimately producing a very crisp and professional finish for this high tech facility.
Common questions
What resin floor suits a car body repair centre on a tight budget?
A hardwearing epoxy scratch coat topped with two coats of UV-stable, chemical-resistant coating can suit a car body repair centre where budget rules out a self-levelling system or a pumpable screed with a coating. On this 2,215m2 site just outside Glasgow, that specification delivered a flat, functional floor that matched the building's other high-quality areas.
Can an epoxy coating system cover a damaged concrete floor?
Yes, an epoxy scratch coat can fill surface damage and undulations before the topcoats go down. Here a hardwearing epoxy scratch coat about 1mm thick was squeegeed on and back-rolled to cover considerable damage left by a previous contractor, building thickness within a finished system of only around 1.5mm to 2mm.
Can two floor colours separate traffic lanes from parking bays?
Yes, using two tones of coating is a clear way to zone a workshop floor. In this car repair centre, two coats of UV-stable, chemical-resistant coating were applied in mid-grey and light grey to separate the traffic lanes from the parking bays, with 100mm wide demarcation lines finishing the bays and door entrances.
What had to be dealt with before the new floor was laid?
Existing epoxy coatings of varying thickness had to be removed in several parts of the building, and considerable surface damage left by a previous contractor had to be addressed. The new system also had to stay within a finished thickness of about 1.5mm to 2mm while meeting the client's strict budget.
